Where Should Fire Extinguisher Signs Be Placed?

Fire extinguisher signs must be placed directly above or immediately adjacent to the fire extinguisher unit at a standard mounting height of 1.7 to 2.0 meters (67 to 79 inches) above floor level, ensuring the visual marker remains fully unobstructed by equipment, stacked inventory, or architectural columns, visible from multiple room vantage points and along designated escape pathways.

Contents

1. Why Fire Extinguisher Sign Placement Matters

2. European Regulations on Fire Extinguisher Signage

3. Where to Place Fire Extinguisher Labels on Cabinets

4. Height Requirements for Fire Safety Signage

5. Recommended Locations for Fire Extinguisher Installation

6. Design Solutions: Integrating Signs with Fire Furniture

7. Common Mistakes in Sign Placement

Why Fire Extinguisher Sign Placement Matters

Fire extinguisher sign placement directly determines the speed of fire emergency response, eliminates visual identification delays, ensures total structural compliance with occupational safety codes, and prevents costly facility shutdown liabilities during municipal safety audits.

During early-stage fire outbreaks, human cognitive response narrows under intense psychological stress, dense smoke accumulation, and rapid temperature escalation. In industrial manufacturing environments, power distribution hubs, and commercial logistics centers, seconds lost searching for fire suppression equipment dramatically increase thermal propagation rates. Proper spatial positioning of a Fire Extinguishing Sticker or rigid wall sign ensures that building occupants can immediately locate emergency response tools from distances exceeding 20 meters, transforming panic into structured mitigation.

From an operational and legal standpoint, improper placement of a Fire Extinguishing Sticker leads directly to non-compliance penalties issued by regulatory bodies such as OSHA or European fire safety inspectorates. Industrial facilities that fail to maintain clear visual identification for all emergency equipment face strict citations, increased corporate insurance liability premiums, and potential closure orders during routine safety inspections. Proper positioning ensures that visual markers remain above working sightlines, structural partitions, and temporary machinery configurations.

Furthermore, effective signage placement safeguards capital equipment investments and localized infrastructure. Highlighting the precise location of manual extinguishers or automated suppression cabinets allows site personnel to contain localized thermal events before overhead automatic water sprinkler systems activate, preventing water damage to sensitive electronic control panels, server racks, and automated CNC machinery lines. A well-designed Fire Extinguishing Sticker serves as the critical visual link between personnel and immediate fire containment.

To evaluate why industrial buyers prioritize standardized signage positioning across large-scale commercial facilities, consider the key operational performance metrics and compliance benefits detailed below:

European Regulations on Fire Extinguisher Signage

European fire safety regulations dictate that fire extinguisher signage must strictly conform to EN ISO 7010 graphical standards, Directive 92/58/EEC visual safety mandates, and defined photoluminescent luminescence decay limits to guarantee immediate identification under emergency power outage conditions.

Across the European Union and associated economic zones, safety signage standardization is strictly enforced to eliminate language barriers in multi-national industrial workforces. Standard EN ISO 7010 specifies the red square graphical format (Safety Sign Code F001) featuring a clean white pictogram of a fire extinguisher alongside stylized flame symbols. The precise color spectrum must strictly align with RAL 3001 Signal Red for background panels, ensuring high chromatic contrast against standard industrial walls and technical equipment enclosures. A high-durability Fire Extinguishing Sticker applied to equipment must maintain these exact graphical and chromatic standards.

Directive 92/58/EEC governs the minimum dynamic dimensions required for fire safety signs relative to the maximum viewing distance across industrial halls. The minimum height of the sign panel or Fire Extinguishing Sticker is calculated using the standard formula h = d / 200, where h represents the physical sign height in meters and d represents the required observation distance in meters. For example, an industrial warehouse aisle requiring identification from a distance of 30 meters demands a sign panel height of at least 150 millimeters. Furthermore, European standards require photoluminescent performance per DIN 67510 class B or higher, ensuring persistent glow intensity after main power failures.

Industrial facility procurement managers across Germany, France, Italy, and Northern Europe prioritize weather resistance and chemical resistance in safety markings. Application of a Fire Extinguishing Sticker Laminated Adhesive guarantees full compliance with European ambient durability guidelines, protecting the underlying warning graphics against industrial solvent washdowns, UV radiation exposure, and mechanical abrasion in heavy machinery environments.

The core technical specifications governing European safety signage standards are summarized in the structured specification overview below:

Where to Place Fire Extinguisher Labels on Cabinets

Fire extinguisher labels on protective storage cabinets must be applied directly to the center-upper exterior door surface at eye level, with supplementary side-facing markers installed on cabinet sidewalls to provide uninterrupted 180-degree visual tracking along traffic corridors.

Fire safety cabinets are widely deployed across chemical processing plants, commercial kitchens, offshore platforms, and manufacturing floors to isolate portable fire extinguishers from environmental contamination, dust accumulation, and physical impact. However, housing equipment inside solid metal or stainless steel enclosures creates a visual barrier. Applying a high-clarity Fire Extinguishing Sticker on the primary cabinet door panel immediately alerts building occupants to the presence of emergency response equipment housed within the cabinet interior.

For solid cabinet doors, a large-format Fire Extinguishing Sticker must be positioned on the upper third of the door face, centered horizontally. When cabinets feature clear polycarbonate or tempered glass viewing panels, a clear-background Fire Extinguishing Sticker with bold red text and step-by-step operation diagrams must be applied adjacent to the locking latch or handle mechanism. This ensures that operating instructions remain visible without obstructing the transparent window used for quick pressure gauge inspections.

In high-traffic warehouse corridors where cabinets are recessed into wall niches, front-facing labels alone are insufficient due to limited side viewing angles. Safety engineers recommend applying dual-sided angular directional markers or applying a high-durability Fire Extinguishing Sticker with Clear Instructions Weatherproof Warning Labels to both side exterior faces of the cabinet box. This ensures immediate visual identification from approaching personnel moving from either direction down the hallway.

When selecting cabinet labeling configurations for specialized industrial environments, engineers must evaluate component materials and surface bonding properties as detailed in the technical breakdown below:

Cabinet Label Maintenance Tip: Perform quarterly inspection routines on all cabinet-mounted stickers. Wipe surfaces clean using a mild isopropyl alcohol solution to remove grease, industrial dust, and chemical vapors. Verify that the adhesive edges remain fully sealed against moisture penetration, ensuring the graphical instructions remain legible during emergency power outages.

Height Requirements for Fire Safety Signage

Fire safety signage height requirements mandate mounting primary wall signs at an elevation between 1.7 meters and 2.0 meters (67 to 79 inches) above finished floor level, ensuring the visual marker remains unobstructed by floor-level obstacles and fully visible above normal eye level.

Establishing correct vertical elevation metrics for safety signage is critical for maintaining uninterrupted sightlines across industrial facilities. Mounting a Fire Extinguishing Sticker or rigid sign panel too low results in visual obstruction by parked forklifts, pallets, workbench dividers, and moving personnel. Conversely, mounting signage too high puts the visual marker above natural horizontal sight lines, causing delays during high-stress emergency searches.

In standard European commercial building configurations, primary overhead wall signs are positioned precisely at 2.0 meters from the floor to the bottom edge of the sign board. In facilities with low ceilings or specialized mechanical ductwork overhead, the minimum allowable mounting height is 1.7 meters. Where fire extinguishers are mounted directly on open walls via mounting brackets, a primary Fire Extinguishing Sticker or sign must be located directly above the extinguisher, while the top handle of the fire extinguisher itself must not exceed 1.5 meters above floor level for units weighing under 40 pounds (18 kg).

Modern industrial safety engineering frameworks also implement low-location lighting (LLL) and low-level safety signage systems per ISO 16069. During dense smoke accumulation events, thermal stratification causes smoke to rise and fill the upper half of room spaces, completely obscuring overhead signs mounted above 1.7 meters. To counteract this operational vulnerability, supplementary low-level Fire Extinguishing Sticker indicators are placed 15 to 30 centimeters above floor level directly beneath the equipment position, allowing evacuees crawling under smoke layers to locate life-saving suppression equipment quickly.

The standard height distribution matrix across commercial and heavy industrial installations is specified in the technical measurement breakdown below:

Recommended Locations for Fire Extinguisher Installation

Recommended locations for fire extinguisher installation include designated escape routes, primary building exits, high-risk operational zones, electrical control rooms, and mechanical equipment areas, positioned so that travel distances do not exceed 15 to 20 meters from any point in the facility.

Spatial planning for manual fire suppression equipment requires systematic assessment of structural layouts, fire load hazard classifications, and occupant movement corridors. Placing a Fire Extinguishing Sticker without analyzing equipment accessibility compromises emergency response protocols. Equipment and corresponding location markers must be positioned along natural paths of travel, ensuring personnel retreat toward safety exits when retrieving a fire extinguisher.

In high-density industrial manufacturing halls, fire extinguishers must be situated adjacent to primary exit access doors, stairwell entry landings, and major cross-aisle intersections. Placing equipment near exits guarantees that an operator always maintains an unblocked evacuation path behind them while fighting a localized fire. In high-risk operational zones, such as battery charging bays, chemical mixing stations, and CNC machining centers, specialized suppression tools and high-visibility Fire Extinguishing Sticker indicators must be installed within 10 to 15 meters of the hazard zone, kept clear of potential fire splash zones.

Electrical control rooms, server facilities, and automated power distribution enclosures require clean-agent suppression systems. Integrating localized automatic fire suppression modules inside enclosed equipment cabinets provides immediate containment at the source. Installing a compact micro-aerosol unit such as an Aerosol Fire Extinguishing Sticker 12g inside small electrical enclosures ensures immediate thermal suppression, while exterior cabinet face labels alert maintenance personnel to the integrated automatic protection system within.

The spatial allocation rules for various industrial facility environments are detailed in the structural planning matrix below:

Design Solutions: Integrating Signs with Fire Furniture

Integrating fire safety signage directly into modern fire furniture, including modular equipment stands, custom powder-coated cabinets, and durable laminated stickers, creates unified visual fire safety points that optimize floor space and streamline facility maintenance routines.

In high-end modern commercial buildings, architectural aesthetics often conflict with industrial safety compliance. Heavy-duty red steel equipment brackets mounted to decorative glass or polished concrete walls can disrupt interior design standards. To overcome this challenge, modern fire safety design utilizes modular fire furniture—freestanding architectural equipment pods, brushed aluminum storage columns, and recessed cabinet assemblies that seamlessly integrate structural containment with high-visibility graphics.

A key element in integrated fire furniture design is the direct application of custom engineered visual identifiers. Rather than mounting heavy aluminum sign boards to decorative wall cladding, facility managers utilize a high-performance Fire Extinguishing Sticker applied directly to the fire pod exterior. Advanced surface lamination technology ensures that graphics remain crisp, scratch-resistant, and non-fading even under intense commercial LED lighting or natural sunlight exposure through atrium glass facades.

Furthermore, contemporary fire furniture design integrates localized automatic fire extinguishment technology into compact storage pods and industrial electrical hubs. Applying an automated internal micro-aerosol thermal response unit alongside a clear external Fire Extinguishing Sticker creates an active, self-contained fire mitigation system. This hybrid design approach satisfies European industrial buyers who demand multi-layered safety solutions that combine clear visual instructions with automated thermal discharge capabilities.

To evaluate key design options for integrating safety signage with architectural fire furniture, consider the functional comparison detailed below:

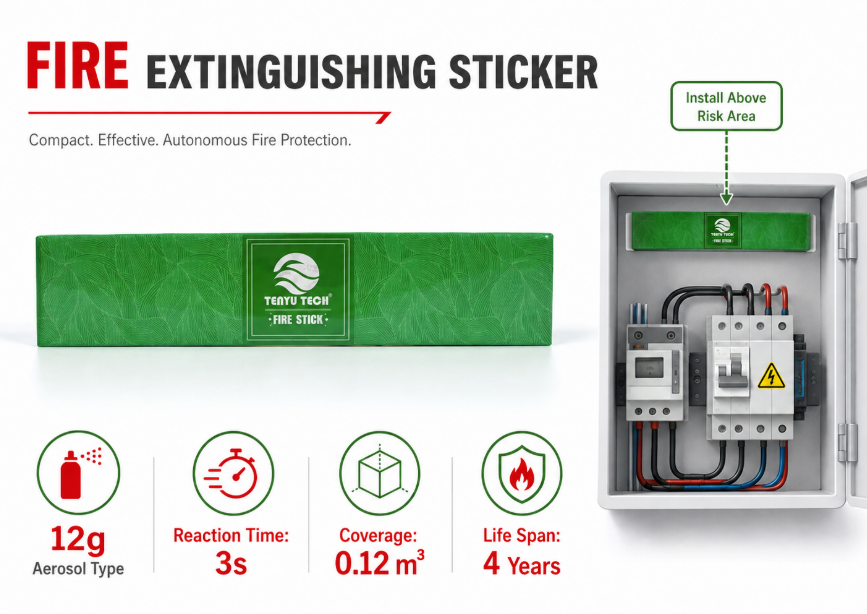

Working Principle of Micro-Aerosol Stickers: Compact internal aerosol fire suppression stickers operate via thermal activation. When ambient temperatures inside an enclosed electrical cabinet exceed a designated threshold (such as 120°C to 170°C) or come into direct contact with open flame, the solid compound undergoes a rapid pyrotechnic reaction. It releases ultra-fine potassium-based solid particles and inert gases that instantly interrupt chemical free-radical chain reactions in the flame, extinguishing the fire in seconds without water or chemical residue.

Common Mistakes in Sign Placement

Common mistakes in fire extinguisher sign placement include mounting visual markers behind open office doors, installing stickers at non-compliant vertical elevations, using non-weatherproof adhesives in outdoor environments, and failing to update class rating labels when fire extinguishers are replaced.

Even well-funded industrial facilities frequently fail fire safety audits due to avoidable visual signage mistakes. A major installation error is positioning a Fire Extinguishing Sticker or rigid sign directly behind room entrance doors or storage room access panels. When doors are propped open during daily operations, the safety sign is completely obscured, leaving building occupants unaware of the emergency equipment location. Signs must always be installed on solid wall surfaces or column faces that remain fully exposed regardless of door positions.

Another widespread mistake is using low-grade, non-laminated paper or unreinforced vinyl labels in harsh industrial environments. Standard non-laminated labels rapidly degrade when exposed to ambient moisture, industrial oils, UV exposure, and frequent washdown cycles in food processing or automotive manufacturing facilities. Faded, peeling, or chemically damaged stickers obscure vital operating instructions and trigger non-compliance fines during municipal inspections. Utilizing a heavy-duty, chemically laminated Fire Extinguishing Sticker prevents surface degradation and ensures multi-year graphic legibility.

Finally, facility managers often neglect matching the chemical class identification indicators on the safety sign with the specific extinguisher unit installed below. Placing a generic CO2 instruction marker above a Water Mist or Wet Chemical Class F extinguisher leads to dangerous operational errors during electrical or grease fire emergencies. Fire safety auditors thoroughly cross-check sticker instructions against extinguisher agent chemical codes to ensure exact operational alignment.

The operational errors, compliance impacts, and technical corrective actions for common signage mistakes are outlined in the diagnostic audit guide below:

Summary & Technical Compliance Final Checklist

Proper placement of fire extinguisher signs and safety labels is a foundational pillar of modern industrial facility engineering, occupant protection, and European regulatory compliance. By adhering strictly to EN ISO 7010 graphical standards, Directive 92/58/EEC viewing distance formulas, and precise vertical mounting height parameters (1.7m to 2.0m), industrial plant directors, safety engineers, and B2B procurement managers can build fully compliant, highly resilient fire safety infrastructures.

Integrating high-durability, chemically laminated safety stickers and automated micro-aerosol suppression mechanisms into custom fire furniture and equipment cabinets ensures rapid visual identification and instant thermal containment. Implementing routine quarterly inspection protocols and avoiding common sightline obstruction errors guarantees that fire protection systems remain fully operational, passing safety audits with distinction and safeguarding valuable capital assets against fire hazards.
