Heat Aerosol Fire Extinguishing Device for Electric Boxes

A heat aerosol fire extinguishing device is an advanced, self-contained fire suppression solution specifically engineered to detect thermal anomalies and instantly release a non-toxic, dry aerosol cloud to neutralize fires within electric boxes and cabinets.

This guide explores the mechanisms, benefits, and practical applications of aerosol technology in electrical safety. We will examine how this modular, maintenance-free system provides unparalleled protection, ensuring that even in the event of an electrical fault, damage is localized and catastrophic system-wide failure is prevented.

Table of Contents

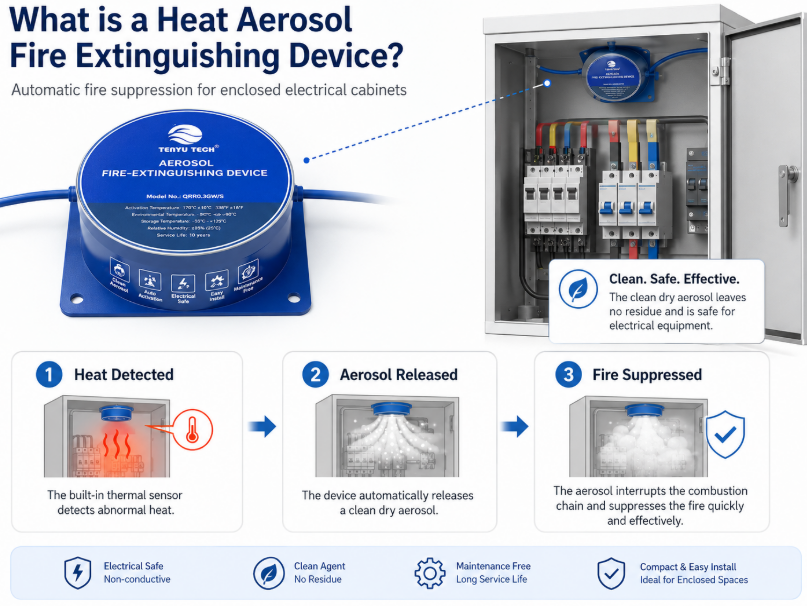

What is a Heat Aerosol Fire Extinguishing Device?

A heat aerosol fire extinguishing device is a sophisticated, automatic fire suppression unit designed to activate upon reaching a specific threshold temperature, effectively flooding an enclosed space with fire-extinguishing aerosol particles that terminate combustion at the molecular level.

These devices function by converting a stable solid chemical compound into a fine, solid-particle aerosol when activated. Unlike traditional liquid-based extinguishers that can cause secondary electrical shorts or corrosion, the aerosol remains suspended in the air, reacting with the combustion radicals to absorb heat and inhibit the flame chain reaction. This process is particularly effective for enclosed spaces like electrical boxes because it does not require an external power source to activate, nor does it rely on pressurized cylinders that might leak over time.

For smaller enclosures, utilizing a compact solution such as a 0.4kg S-type aerosol extinguishing unit with CE and MSDS certification provides immediate, localized protection. These units are designed to be easily mounted inside panels, ensuring that the fire is suppressed the moment it begins, long before it has the opportunity to spread to adjacent circuits or external equipment.

The chemistry behind Aerosol Fire Extinguishing is centered on the rapid release of potassium-based compounds. When heat activates the solid reactant, the resulting aerosol is chemically inert toward most metals, plastics, and electronic components. This characteristic is vital for the protection of electrical boxes, as it allows businesses to resume operations quickly after an event, without the need for extensive equipment cleaning or complex decontamination processes common with powders or foams.

Key Features of the Heat Aerosol Fire Extinguishing Device

The primary features of these devices include an automatic, non-pressurized activation mechanism, a highly compact form factor suitable for tight spaces, and a robust construction that ensures long-term operational reliability in harsh industrial environments.

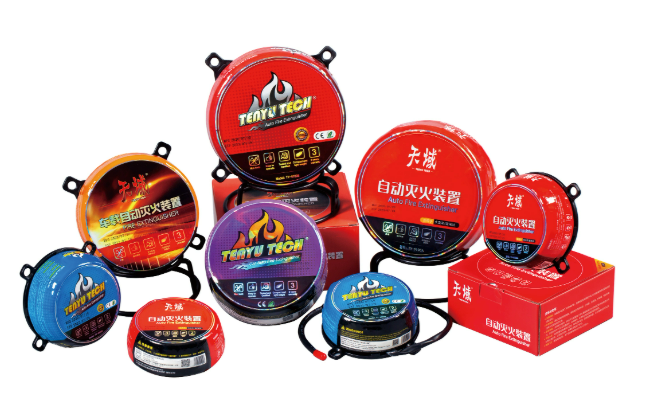

One of the standout technical advantages is the variety of configurations available for specific site requirements. For instance, a 0.35kg S-type aerosol device featuring integrated CE and MSDS compliance is ideal for micro-enclosures where space is at an absolute premium. These units are maintenance-free, offering a reliable service life that significantly reduces the total cost of ownership compared to traditional mechanical fire suppression systems.

Data regarding the effectiveness of these systems is summarized in the table below, comparing them to standard fire safety equipment:

Furthermore, the design philosophy emphasizes longevity and safety. The casing is built to withstand extreme vibrations and environmental fluctuations often found in factory settings. Whether utilizing a smaller 0.5kg S-type aerosol fire extinguishing ball system or a larger array for extensive cable galleries, the consistent performance of the aerosol output ensures that the fire density is controlled rapidly and safely.

Applications of the Heat Aerosol Fire Extinguishing Device

Heat aerosol fire extinguishing devices are primarily utilized in enclosed electrical environments, including server racks, power distribution cabinets, circuit breaker panels, and motor control centers where immediate, clean suppression is critical.

In the context of industrial automation, electricity is everywhere. Electrical cabinets are the most common source of spontaneous fire ignition due to dust accumulation, loose connections, or component aging. Installing an aerosol device within these cabinets provides a "guardian" that works 24/7. Because these units do not require a separate water supply or heavy piping, they are perfectly suited for retrofitting in existing facilities where structural modifications are either impossible or prohibitively expensive.

Beyond standard electrical panels, these systems are used in:

1. Wind turbine nacelles and junction boxes.

2. Battery energy storage systems (BESS) where lithium-ion thermal runaway is a major concern.

3. Transportation infrastructure, such as automated signaling cabinets and railway signal boxes.

4. Telecommunication towers and data centers housing sensitive server hardware.

By strategically placing these devices at the point of origin, facilities can prevent a small electrical arch from escalating into an industrial disaster. This modular approach allows for scalable safety measures that grow alongside your electrical infrastructure, providing targeted protection for each cabinet individually.

Why Choose a Heat Aerosol Fire Extinguishing Device?

Choosing a heat aerosol fire extinguishing device offers unmatched advantages in safety, environmental responsibility, and equipment protection, providing a future-proof fire suppression strategy for critical electrical assets.

The primary reason to shift toward Aerosol Fire Extinguishing technology is the preservation of equipment. In a B2B environment, the downtime caused by a fire is often more expensive than the damage to the hardware itself. Water-based systems, even mist systems, can cause permanent damage to circuit boards. Aerosol, being dry and non-corrosive, preserves the integrity of the hardware.

Moreover, consider these compelling reasons to integrate these systems:

• Superior Efficiency: Aerosol particles stay suspended longer than dry chemicals, penetrating every corner of the electrical box.

• Environmental Safety: These devices use clean agents that are ozone-friendly and have low global warming potential.

• Space Optimization: The compact nature of these units means they take up minimal cabinet volume, leaving more room for essential electronic components.

• Low Maintenance: Unlike pressurized systems that require annual pressure checks, these units are solid-state and require only routine visual inspections.

FAQ

Are these devices safe for sensitive electronic components?

Yes, the aerosol particles are non-conductive, non-corrosive, and chemically inert. They do not leave a residue that would interfere with delicate circuitry, making them the safest choice for high-value electronics.

How long do these devices last?

Typically, these devices have a shelf life and operational service life of up to 10 years, provided they are stored in recommended environmental conditions. They require zero maintenance during this period.

Can I install these in an existing electrical cabinet?

Absolutely. Most aerosol units feature versatile mounting options, such as industrial-strength magnets or screw-mount brackets, allowing for rapid installation in existing cabinets without disrupting ongoing operations.

How do I know if the device has been activated?

The units are designed with simple visual indicators. A quick glance during a routine maintenance check of the electrical box will reveal if the unit's seal has been broken or the activation mechanism has triggered.
